Summary

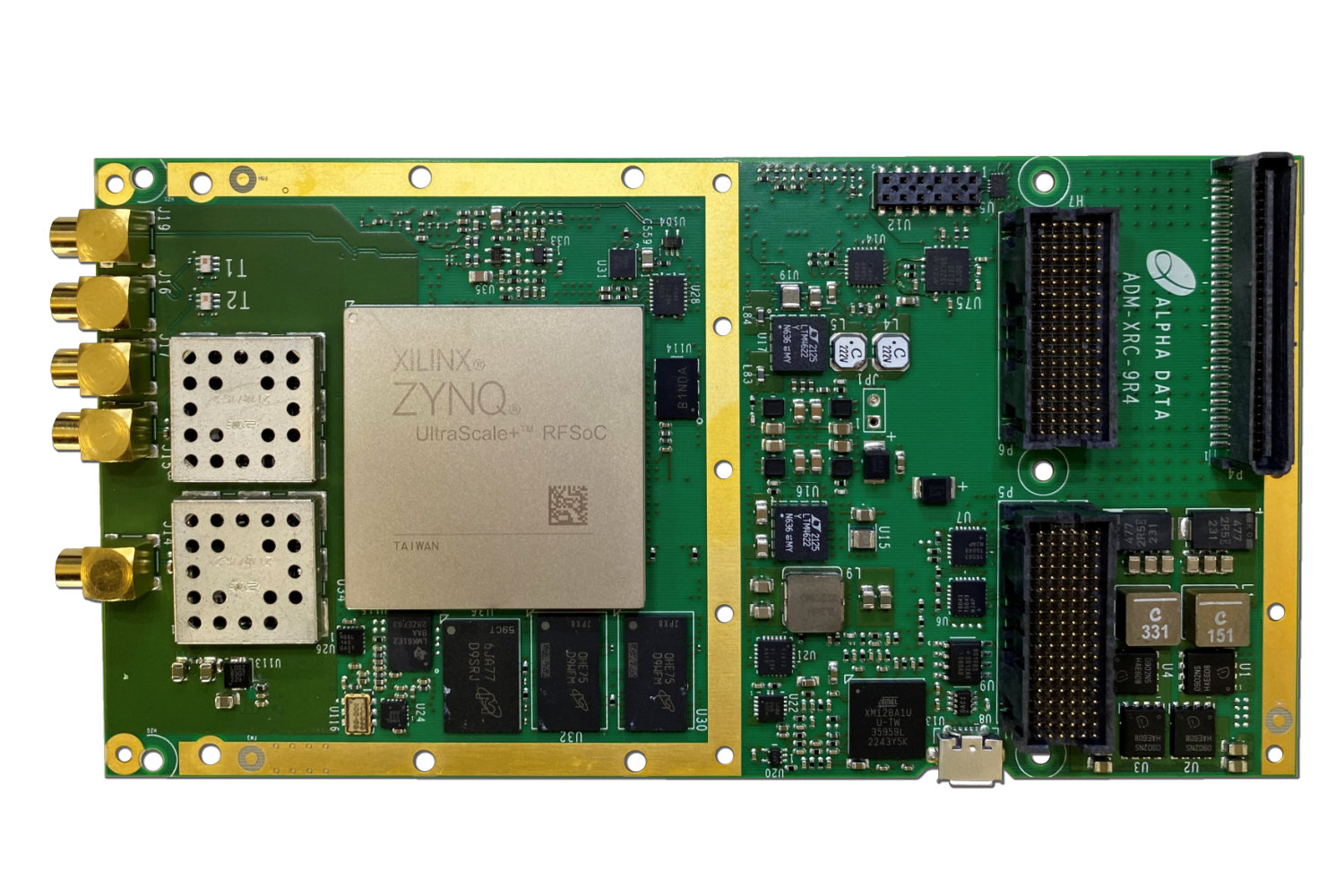

The ADM-XRC-9R4 is a high performance System On Module (SOM) based on the AMD Zynq Ultrascale+ RFSoC, which combines FPGA Fabric, ADC and DAC interfaces and ARM CPU cores in a single low-power device.

The module is provided in rugged XMC (or XMC+) format and is available in Industrial temperature grades with Air or Conduction Cooling.

Applications

RF Signal Sampling/Generation
Radar
Beamforming
MIMO (5G) communications Tx and Rx
Signal Detection/Jamming

Board Features

2x 14 bit 5.9GSPS RF-ADC
2x 14 bit 10GSPS RF-DAC
Digital Front-End Hard-IP
On-board microcontroller accessible via USB, provides
power rail monitoring
temperature Monitoring
clock programming

FPGA Features (Hard IP)

4x ARM® Cortex™-A53 MPCore™ - 1.5GHz
2x ARM® Cortex™-R5 MPCore™ - 533MHz
2x 14 bit 5.9GSPS RF-ADC
2x 14 bit 10GSPS RF-DAC
1x Digital Front-End Hard-IP

Specification

Board Format

XMC (Switched Mezzanine Card, VITA 42) or XMC+ (VITA 88)

Environmental Specifications

Temperature Limits
Operating Temperature RangeStorage Temperature Range
MinMaxMinMax
AC1Air Cooled Industrial-40°C+70°C-55°C+100°C
CC1Conduction Cooled Industrial-40°C+70°C-55°C+100°C

Operating Humidity Range:
Up to 95% (non-condensing)


Host I/F

n/a


Target Device

AMD Zynq® Ultrascale+
XCZU67DR-2 (FFVE1156)

FPGA Resources

Chosen DeviceDSPsBRAMURAM
XCZU67DR-2187222.8Mb45Mb

FPGA Hard IP Cores

4x ARM® Cortex™-A53 MPCore™ - 1.5GHz
2x ARM® Cortex™-R5 MPCore™ - 533MHz
2x 14 bit 5.9GSPS RF-ADC
2x 14 bit 10GSPS RF-DAC
1x Digital Front-End Hard-IP

On Board Memory

Memory TypeNo. BanksMemory Size (per bank)
SDRAM116Gb DDR4-2400 - (to PS)
SDRAM18Gb DDR4-2400 - (to PL)
microSD1SD Card specific SDC - (Connected to Ps)

Target FPGA Configuration

PS - Configured via QSPI or uSD


FPGA Configuration Flash

Flash TypeFlash Size
QSPI2x512Mb

On-board Clock Specifications

100MHz Reference Clock- HSSIO MGTs
Programmable Clock (125MHz default)
300MHz Reference Clock
PCIE Reference Clock
50MHz Reference Clock (PS Core)
External Analog Reference Clocks


I/O Interfaces

Interface TypeQtyDescription
ANALOG I/O (Front I/O)
High-Frequency Analogue Inputs2Dual 14-bit 5.9GSPS RF-ADC with an external low-pass filter - amplifier - digital attenuator - Balun (all bar the Balun is bypassable)
Connector: MCX
High-Frequency Analogue Outputs2Dual 14-bit 10GSPS RF-DAC driving a Balun to the output connector
Connector: MCX
External Clock Input1External Clock Source
Connector: MCX
REAR I/F FROM PL I/O (P5)
High-Speed Serial IO8HSSIO Links - 10G Ethernet
ONBOARD COMMS TO SYSTEM MONITOR I/O (Onboard)
Onboard USB Comms1micro USB Interface to system monitor
Connector: micro USB connector
REAR I/F FROM PS I/O (P4)
Low-Speed Serial IO1Serial Comms Ports
DISCRETE I/O (P4/P6)
Low-Speed Digital IO1515x single ended signals (to both Pn4 and Pn6)
DISCRETE I/O (P6)
Low-Speed Digital IO1010x differential pair signals (to Pn6 ONLY)

Ordering Information

Ordering Code
ADM-XRC-9R4(x)(c)(a)
ParameterCodeParameter Description
XMC+ Optionxblank = Standard XMC connectors Fitted,
/V88 = XMC+ connectors fitted
Coolingc/AC1 = air cooled industrial,
/CC1 = conduction cooled industrial
Conformal Coatingablank = no conformal coating,
A = Acrylic,
P = Polyurethane
NoteContact Sales for other options
